CDHD2 – High Performance Servo Drives

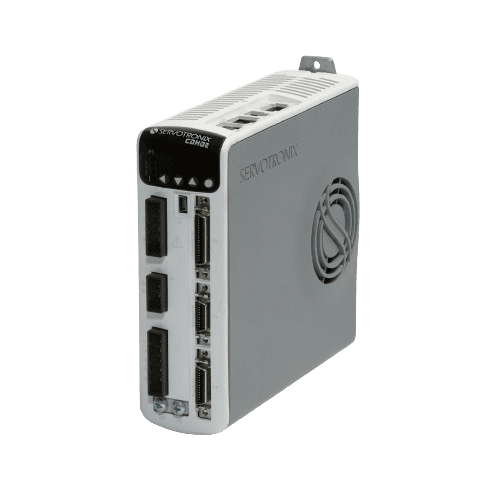

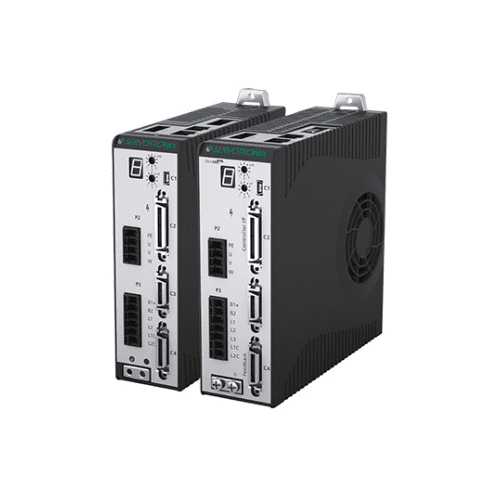

CDHD2 is the second generation of the CDHD servo drive family. It features ease of use and advanced control algorithms. The comprehensive feature set of the CDHD2 allows to build more accurate and more efficient machines.
CDHD2 current loop design achieves an industry leading frequency response of 3-5 kHz. Advanced autotuning reduces tracking error and settling time to almost zero, and an innovative anti-vibration algorithm eliminates mechanical resonance. CDHD2 supports virtually any motor, any feedback type, and any I/O requirement. It offers seamless commissioning through ServoStudio software or direct terminal access, with all–in-one tuning of current, velocity, and position control loops.
By:
Product Highlights
- High performance control of all synchronous servo motors
- Interfaces multiple feedback devices
- Secondary encoder interface for closed dual loop control
- Built in operator panel for drive configuration and diagnostics
- Position compare output module
- Built-in support for both rigid and flexible Gantry
- 1D error correction compensation table
- Advanced control algorithms achieve maximum machine accuracy and throughput
- High power density in a small footprint
- Safe Torque Off (STO)
- Simple commissioning with new ServoStudio™ 2.0 GUI along with comprehensive parameterization options for optimal configuration
- Input voltage support: 20 V up to 480 V
Downloads
CDHD2 User Manual
V 2.6
CDHD2 Quick Start Guide
V 1.4
CDHD2 VARCOM Manual
V 1.3
Servostudio2 Manual
V 1.1
Operator Panel (HMI)
V 2.15
Product Highlights
- High performance control of all synchronous servo motors
- Interfaces multiple feedback devices
- Secondary encoder interface for closed dual loop control
- Built in operator panel for drive configuration and diagnostics
- Position compare output module
- Built-in support for both rigid and flexible Gantry
- 1D error correction compensation table
- Advanced control algorithms achieve maximum machine accuracy and throughput
- High power density in a small footprint
- Safe Torque Off (STO)
- Simple commissioning with new ServoStudio™ 2.0 GUI along with comprehensive parameterization options for optimal configuration
- Input voltage support: 20 V up to 480 V
